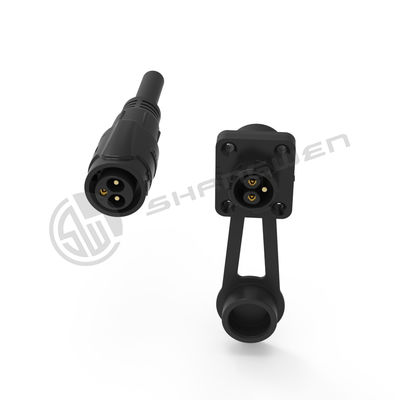

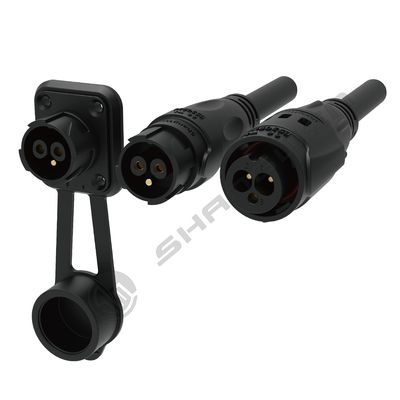

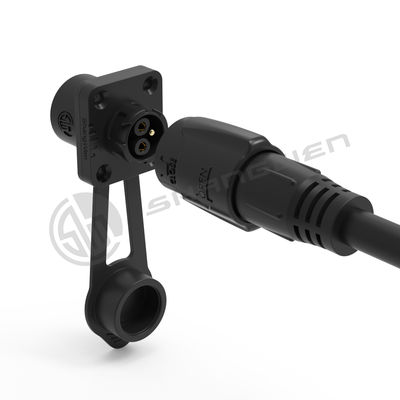

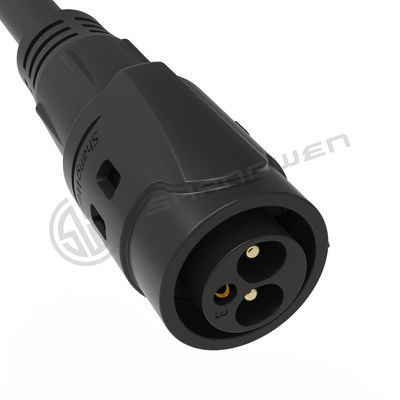

M19 Series 3*2.5mm² CCC VDE CE Power Cable Push-pull Self-locking Black 3 Pin Female Male Plug Power Input Connector
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Bahan konduktor | Tembaga | Bahan isolasi | PA66 |
|---|---|---|---|
| Tegangan terukur | 250 V | Ukuran | 3*2.5 |
| Level IP | IP65 | Elektronik Industri | Aksesoris |
| Menyoroti | Power Cable M19 Connector,Push-pull Self-locking M19 Power Connector,Push-pull Self-locking Connector |
||
Deskripsi Produk
Products Description
SW19 Self-locking series-3 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP65
1.Electrical parameters
Contacts NO. | 3 pin |
Rated current | 20A |
Rated voltage | 300V AC |
Withstand voltage | 1500V |
Insulation resistance | ≥100mΩ |
Contact resistance | ≤10mΩ |
2.Mechanical parameters
Service life | ＞1000 times |
Power line | Φ4.5mm-Φ11mm |
Cable size | 0.3mm²-2.5mm²(22AWG-12AWG) |
Type of terminals | Screw terminal and soldering terminal available |
3.Material and environmental parameters
Shell | High performance engineering plastics |
Contacts | Copper alloy |
Contact diameter | Φ2.4mm |
Protection degree | IP67 |
Flame-retardant grade | UL94-V0 |
Temperature range | -40℃~105℃ |
4.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
