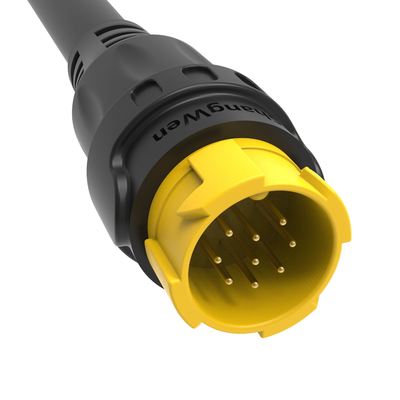

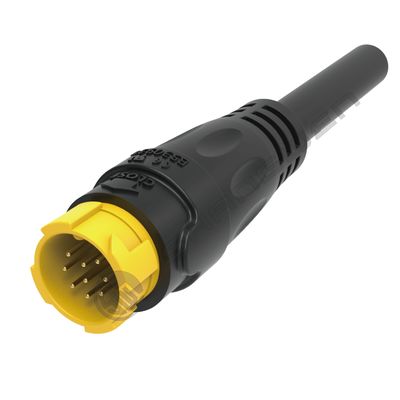

M19 Series Push-pull Self-locking Yellow Connection Industrial 9 Pin Female Male Plug Signal Connector

Tempat asal	Guangdong, Tiongkok
Nama merek	SHANGWEN
Nomor model	SWM19-3TYS-09
Kuantitas min Order	10

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

Detail produk

Aplikasi	Industri	Bahan kontak	Tembaga
Nilai saat ini	5 A	Tegangan terukur	50v
Jenis kelamin	Pria/wanita	Jenis	SW19 Seri penguncian otomatis
Elektronik Industri	Aksesoris
Menyoroti	Push-pull Self-locking Signal Connector , 9 Pin Signal Connector , Male Plug Signal Connector

Tinggalkan pesan

Deskripsi Produk

Products Description

SW19 Self-locking series-9 Pin connector

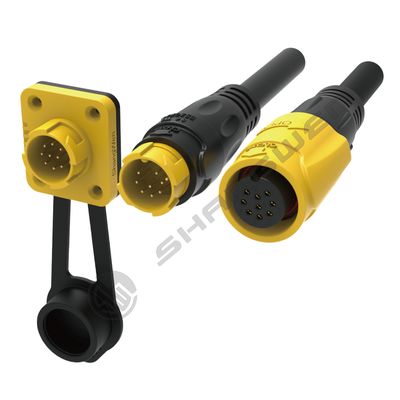

M19 series is an industrial connector, which includes male plug, female plug and male socket.

There are two locking methods:

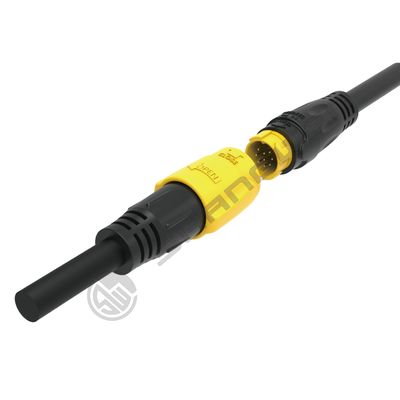

1. Push-pull self-locking connection

2. Plastic screw connection, both locking design is very reliable.

The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.

The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

Model : SW19-9JS-TY

☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67

1.Electrical parameters

Contacts NO.	9 pin
Rated current	20A
Rated voltage	300V AC
Withstand voltage	1500V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Cable size	0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals	Screw terminal and soldering terminal available

3.Material and environmental parameters

Shell	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ2.4mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃

4.Size reference (unit /mm)

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
