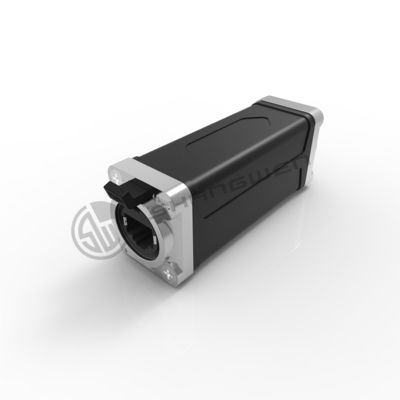

Wholesale Outdoor Coupler Rj 45 Plug Female Signal Adapter Cable Connectors
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Jenis kelamin | Perempuan | Jenis | Adaptor |
|---|---|---|---|
| Elektronik Industri | Aksesoris | ||
| Menyoroti | Plug Signal Adapter Cable Connectors,Wholesale Signal Adapter Cable Connectors |
||
Deskripsi Produk
Products Description
etherCON feedthrough coupler for cable to cable extensions
Outdoor signal adapter connector
☑NE8FF coupler (adapter) for cable to cable mating – use with NE8MC carriers or any standard RJ45 plug
☑Approved latch lock system
1.Product parameters
Connection Type | Coupler (adapter) |
Gender | Female |
2.Electrical parameters
Contact resistance | < 10 mΩ |
Dielectric strength | 1 kVdc |
Frequency Range | 1 - 100 MHz |
Insulation resistance | > 0.5 GΩ |
Rated current per contact | 1,5 A |
Rated voltage | < 50 V |
Standards compliant | TIA/EIA 586B, IEC11801 |
3.Mechanical parameters
Insertion force | ≤ 20 N |
Pull out force | ≤ 20 N |
Service life | > 1000 mating cycles |
Locking device | Latch lock |
4.Material and environmental parameters
Contacts | Bronze (CuSn8) |
Contact plating | 0.2 µm Au over Ni plating |
Inner core | PBTP 15 % GR |
Shell | AlMgSi 0.5, black plated |
Clamping sleeve | CuZn35Pb2, tinned |
Flammability | UL 94 HB |
Temperature range | -30 °C to +80 °C |
5.Assembly reference
