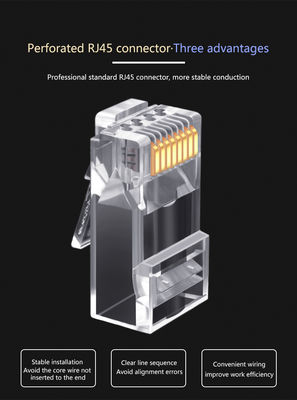

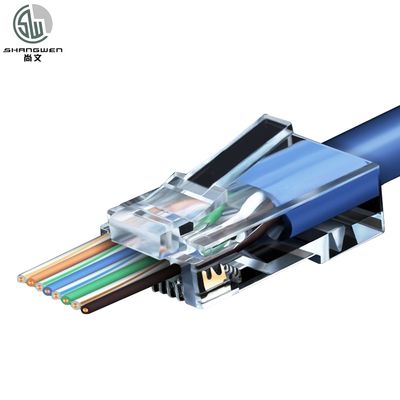

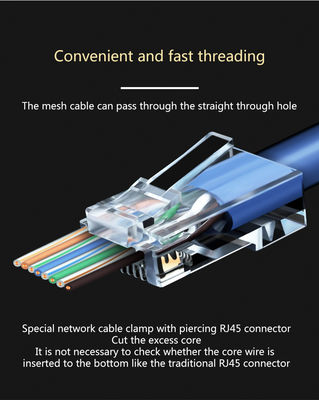

8P8C RJ45 Cat5e Cat6 UTP Jack Connector Adapter for Wall Plate Toolless 90 Degree Internet Network Ethernet Lan Cable
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Aplikasi | Listrik, Telepon dan Jaringan | Jenis kelamin | Pria, Pria |
|---|---|---|---|
| Jenis | RJ45, UTP 8P8C | Pin | 8p |
| Nama | Konektor RJ45 | Negara asal | Guangdong, Cina |
| Warna | transparan | Berat | Sekitar 1.6g/buah |
| Perisai | Utp | Kata kunci | Konektor CAT6/CAT6A/UTP/RJ45/Berlapis Emas/jaringan |
| Menyoroti | 90 Degree RJ45 Connector Adapter,8P8C RJ45 Connector Adapter,UTP RJ45 Connector Adapter |
||
Deskripsi Produk
Products Description

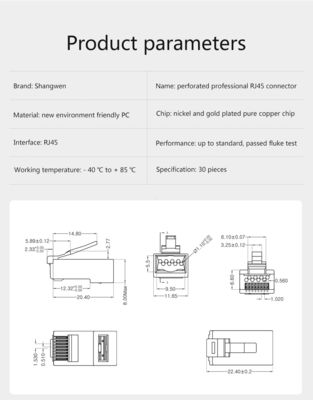

PLUG SPECIFICATIONS | ||
Connector | 50U’’8P8C RJ45 Plug | |
Model | SW-CN-UPG603 | |
Shielding | UTP | |
Color | transparent | |
Electrical Test | 1.Dielectric Withstanding Voltage test 1000V/DC | |
2. Insulation Resistance: >500MΩ | ||
3. Contact Resistance:<20MΩ | ||
Gold Plate Inspection | 1. TYPE II (99% pure gold minimum) | |
2. Grade C+(KNOOP HARDNESS RANGE 130~250) | ||
3. Class 1(50 microinches minimum thickness) | ||
Mechanical | 1. Cable-to-plug tensile strength-20LBs(89N) min. | |
2. Durability:2000 mating cycles. | ||

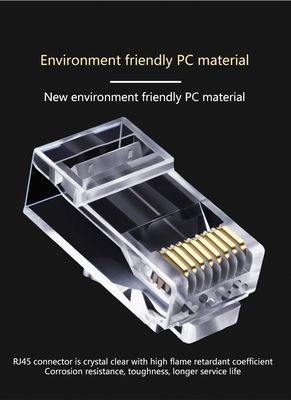

Material & Finish | 1. Housing Material: Polycarbonate(PC.) 94V-2(For UL 1863 DUXR2) | |
2. Contact blade: Phosphor Bronze | ||
a. High strength copper alloy [JIS C5191R-H(PBR-2)]. | ||
b. 100 microinches nickel under plated & Gold selected. | ||
c. Operating Temperature:-40 ℃~+125℃ | ||
Weight | About 1.6g/pcs | |

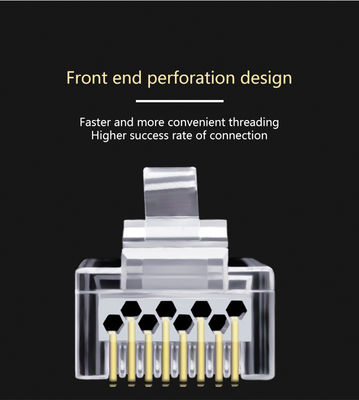

Advantage | a. Special craft shrapnel design, repeated bending without breaking, better support for repeated fluidity use b.Three-prong widening, thickening and lengthening the chip to ensure full contact between the chip and the core c. Connector pure copper chip, processed by nickel plating and gold plating process, anti-oxidation, no blackening d. Connector's chip 50μm gold-plated, supports 100,000 times of repeated plug-and-plug use e.Connector's chip and wire core are precisely riveted, and the transmission is more stable | |
Related Products
Company Information
Certifications
Exhibition
Packaging & Shipping
FAQ
1.Why do we choose JVCOM power supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:CCTV,all Camera,DVR,NVR,LED,Router,Laptop and RJ45 connector etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/RoHS/CCC
4.Accept sample order ?What is your minimum order quantity?
A:trial order or sample order is accept,but same cost as bulk
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:CCTV,all Camera,DVR,NVR,LED,Router,Laptop and RJ45 connector etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/RoHS/CCC
4.Accept sample order ?What is your minimum order quantity?
A:trial order or sample order is accept,but same cost as bulk
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
