☑This RJ45 system is suitable for very harsh environments
☑This cable connection kit works with most RJ-45 connectors
☑Rugged die-cast housing and unique wire rack lock
☑In commercial applications, protecting Ethernet connections, this design protects against the elements of RJ45 standard
components
☑The design of the inner O-ring enables the waterproof rating to reach IP65
Semua produk
-
Konektor Daya Tahan Air
-
Konektor Daya Sirkular
-
IP67 Power Connector
-
Ethernet Chassis Connector
-
konektor XLR
-
Konektor pengeras suara
-
Konektor M19
-
Aksesoris konektor
-
Konektor Pemasangan Panel
-
Konektor M5
-
Konektor M8 - M12
-
Konektor Audio RCA
-
Konektor Video BNC
-
3.5 mm Jack Plug
-
6.35 mm Jack Plug
-
Konektor Industri CEE
-
Kabel daya khusus
-
kabel jaringan serat optik
-
Kabel Daya Fleksibel
-
MakSaya sangat menyukai penampilan produk ini, dan colocation juga memenuhi kebutuhan saya.dan sertifikasi dan spesifikasi yang sesuai di semua sisi lengkap, yang dapat digunakan dengan percaya diri. -
Silvio GaehwilerKomunikasi sikap yang sangat baik dan akan merekomendasikan produk yang sesuai untuk saya sesuai dengan kebutuhan yang sesuai.dan produk merasa baik dan mudah untuk colok dan cabut. -
Jason FajkusSaya telah menjadi pelanggan lama Shangwen, produk mereka pada dasarnya tidak akan memiliki masalah, apakah itu konektor daya atau konektor sinyal dapat mencapai output yang sangat stabil,tuntutan dasar saya dapat dipenuhi, Aku tidak akan khawatir tentang terlalu banyak masalah dengan produk Shangwen. -
Ivan MarticKualitasnya sangat bagus, benar-benar konsisten dengan deskripsi, bahkan melampaui harapan, kecepatan pengiriman sangat cepat, kemasan sangat hati-hati dan ketat,Layanan logistiknya sempurna., kecepatan pengiriman sangat cepat, dan kualitas belanja sangat baik, saya harap lebih banyak teman percaya. -
Arthur GillyPada awalnya, saya membuat pesanan dengan sikap ragu-ragu, tapi saya tidak berharap bahwa kualitas dan kecocokan melebihi harapan saya.dan penjual telah sangat aktif dalam berkomunikasi dengan saya dan membantu saya menjawab pertanyaan.

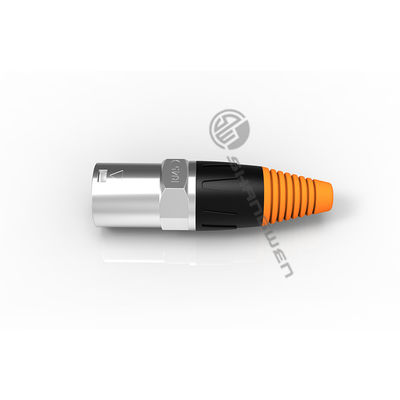

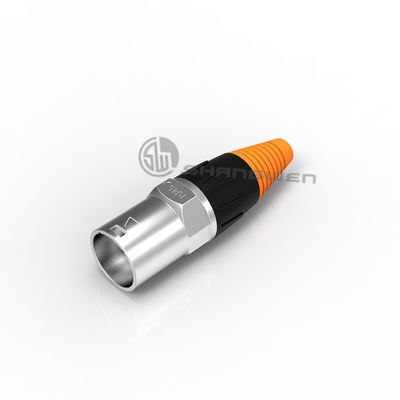

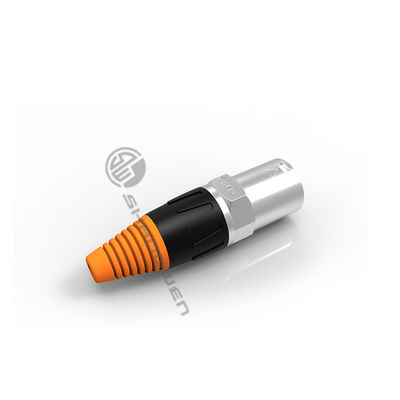

Cable Connection Kit Socket Male Signal Rj45 Waterproof Connector for Network Equipment
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Aplikasi | Ethernet | Bahan kontak | Tembaga |
|---|---|---|---|
| Nilai arus | 10 A | Tegangan Dinilai | 250 V |
| Jenis kelamin | Pria/wanita | Jenis | soket RJ45 |
| Elektronik Industri | Aksesoris | ||
| Menyoroti | Socket male Waterproof Connector,Rj45 waterproof Connector,Equipment Waterproof Connector |
||
Deskripsi Produk
Products Description
Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.
Model：SW8MC-B-2（outdoor use）
1. Mechanical parameters
Service life | ＞1000 mating cycles |
Insertion force | ≤20 N |
Wiring | 5-7mm |
Locking device | latch lock |
2. Material and environmental parameters
Boot | Polyamide |
Shell | Zinc diecast |
Shell plating | Pearl Cr |
Temperature range | -30℃to +80℃ |
3. Size reference (unit /mm)
4. Internal structure reference

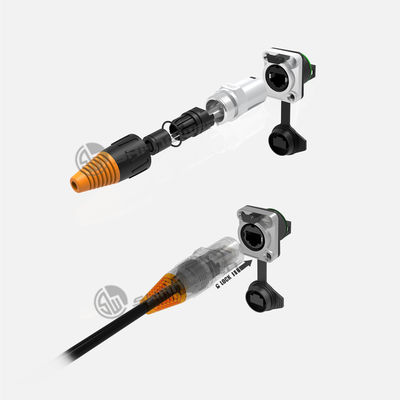

5. Installation instructions with RJ45 socket
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
