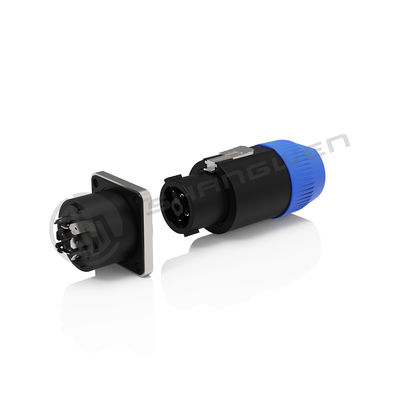

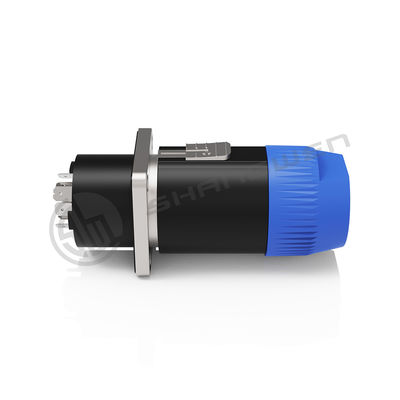

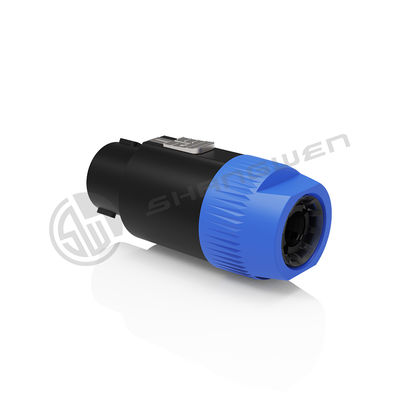

8-Pin Female Speaker Polyamide Shell Female Plug 8 Pin Loudspeakers Connector for 8-20mm Cable High Quality Audio Connectors

Tempat asal	Guangdong, Cina
Nama merek	SHANGWEN
Nomor model	SWF8S-2T,SWM8S-2ZY
Kuantitas min Order	2 buah
Harga	$1.36-2.30 / piece

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

Detail produk

Aplikasi	Audio & Video	Nilai arus	30 a
Jenis kelamin	Pria/wanita	Level IP	IP40
Jenis	Pengeras suara	Elektronik Industri	Aksesoris
Menyoroti	High Quality 8 Pin Loudspeakers Connector , Polyamide Shell 8 Pin Loudspeakers Connector

Tinggalkan pesan

Deskripsi Produk

Products Description

8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Model：SWF8S-2T

☑Current rating 30 A rms continuous
☑Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
☑High impact material for insert and housing, long-lasting and dependable
☑Reliable and robust, easy and fast to assemble ☑Accurate and dependable twist lock latching system "Quick Lock" ☑Chuck type strain relief system for secure clamping of cable

1.Product parameters

Connection Type	speakON
Gender	Female

2.Electrical parameters

Contact resistance	≤ 3 mΩ (after lifetime)
Dielectric strength	4 kVdc (peak)
Insulation resistance	> 1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous
Rated current per contact	A audiosignal, duty cycle 50 %
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!

3.Mechanical parameters

Cable O.D.	8-20mm
Cable retention	≥ 220 N (subject to cable O.D. and material)
Lifetime	> 5000 mating cycles
Wire size	4 mm²
Wire size	12 AWG
Wiring	screw type terminals or soldering
Locking device	Quick Lock (latch)

4.Material parameters

Contact plating	4 µm Ag
Contacts	Brass (CuZn39Pb3)
Insert	PBTP 20 % GR
Locking element	Zinc diecast (ZnAl4Cu1)
Shell	Polyamide (PA 6 30 % GR)
Strain relief	Polyacetal (POM)

5.Environmental parameters

Flammability	UL 94 HB
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C

6.Size reference (unit /mm)

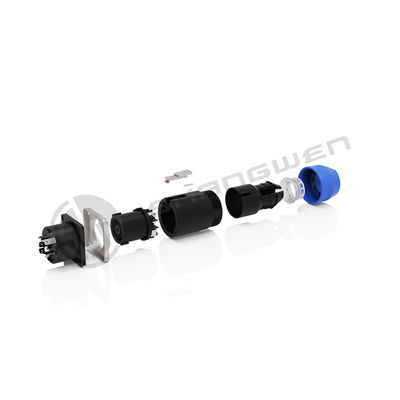

7.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
