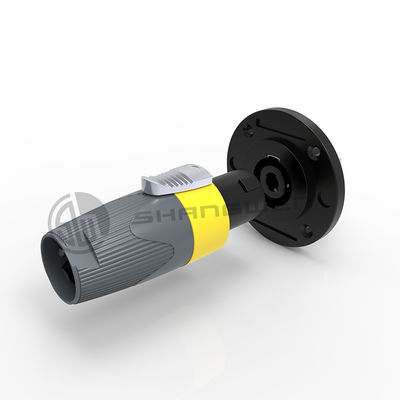

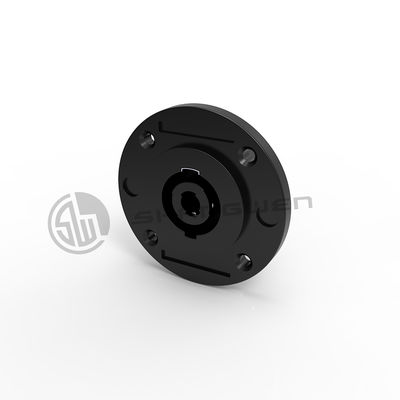

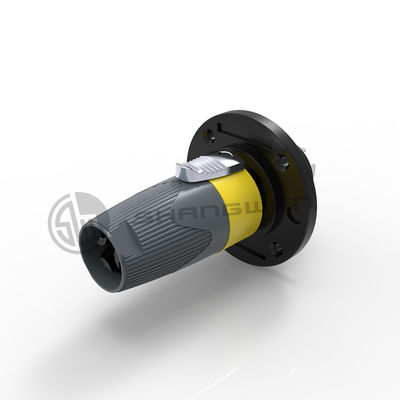

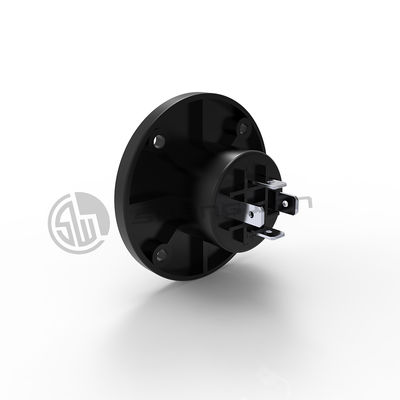

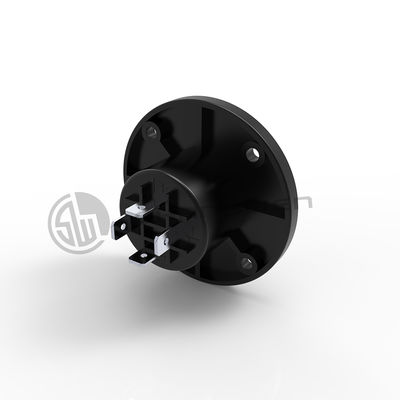

4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Aplikasi | Audio & Video | Nilai arus | 25a |
|---|---|---|---|
| Jenis kelamin | pria | Membentuk | Bulat |
| Jenis | Pengeras suara | Elektronik Industri | Aksesoris |
| Menyoroti | Round Shape Loudspeaker Connector,Latch Lock Loudspeaker Connector,Engineering Plastic Loudspeaker Connector |
||
Deskripsi Produk
Products Description
4Pin Loudspeaker chassis -engineering plastics material
Model：SWM4S-2ZY
☑Metal insert in locking area
☑Glass reinforced materials make it extremely robust and dependable
☑Accurate twist lock latching system ☑Airtight design - optimized for speaker applications
1.Product parameters
Connection Type | Speaker |
Gender | Male |
2.Electrical parameters
Contact resistance | ＜2mΩ |
Dielectric strength | 2.8kVdc |
Insulation resistance | > 1.0GΩ (initial) |
Rated current per contact | 25A |
Rated voltage | 250 V ac |
3.Mechanical parameters
Service life | ＞5000 mating cycles |
Chassis shape | Circular |
Layout | four thru holes |
Locking device | Latch lock |
4.Material and environmental parameters
Contacts | Cu alloy |
Contact plating | Ag |
Shell | Polyamide (PA 6 30 % GR) |
Flame-retardant grade | 94 V-0 |
Temperature range | -30℃to +80℃ |
5.Size reference (unit /mm)
6.Assembly reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
