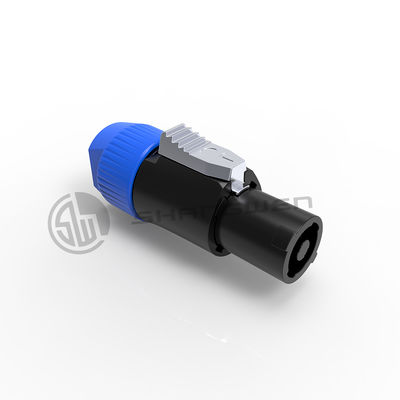

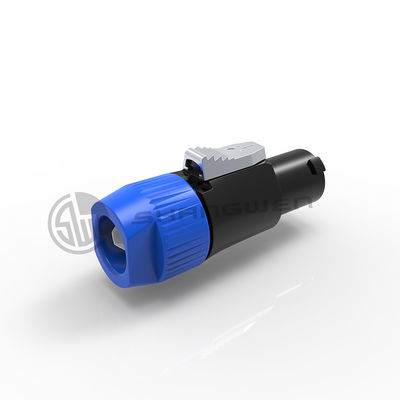

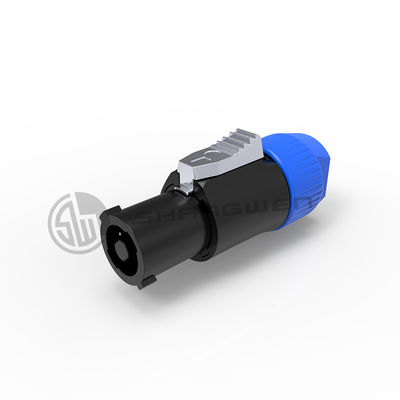

4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections

  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
  • 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections
Tempat asal Guangdong, Cina
Nama merek SHANGWEN
Nomor model SWF4S-2T
Kuantitas min Order 10 buah
Harga $0.83 / piece

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Aplikasi Audio & Video Nilai arus 30 a
Jenis kelamin Perempuan Bahan perumahan nilon
Level IP IP40 Jenis Pengeras suara
Elektronik Industri Aksesoris
Menyoroti

6-15mm Cable Speaker Connector

,

4-Pin Female Speaker Connector
Tinggalkan pesan
Deskripsi Produk
Products Description
4Pin Loudspeaker plug-engineering plastics material
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 0
Model：SWF4S-2T
☑Up to 30A rms current rating
☑Cable strain relief for 6-15mm cable O.D.
☑Glass reinforced material for insert and housing,long-lasting and dependable
☑Reliable and robust, easy and fast to assemble ☑Accurate and dependable twist lock latching system "Quick Lock" ☑User friendly latch design for easy handling
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 2
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 4
1.Product parameters
Connection Type
Speaker
Gender
Female
2.Electrical parameters
Contact resistance
≤3mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
6-15mm
Cable retention
≥220N
Service life
＞5000 mating cycles
Wire size
4 mm²
Wire size
12AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Insert
PBTP 20% GR
Shell
Polyamide (PA 6 30 % GR)
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 V-0
Temperature range
-30℃to +80℃

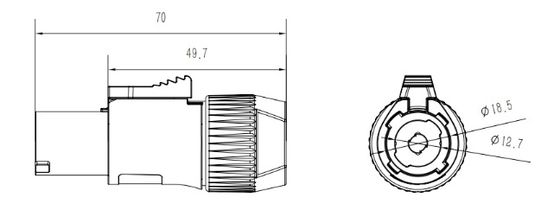

5.Size reference (unit /mm)
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 6

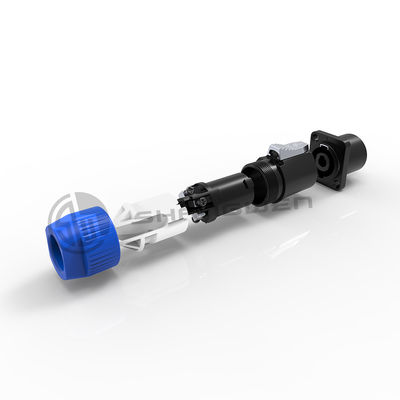

6.Assembly reference
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 8
Application area
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 10
Company Information
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 12
Patent & Certification
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 14
Exhibition activities
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 16
Packaging reference
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 18
Payment and logistics
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 20
FAQ
4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper LED Wire Connections 22
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
