IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM

Place of Origin	Guangdong, China
Nama merek	SHANGWEN
Model Number	SWM8S-2ZM(METAL)
Minimum Order Quantity	10 pieces
Harga	$1.14/pieces

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

Detail produk

Rated Current	50A, 40a	IP level	IP40
Type	Loudspeaker Connector	Gender	MALE/FEMALE
Industrial electronics	accessories
Menyoroti	Latch Lock Cable Loudspeaker Connector , ODM Loudspeaker Connector , Screw-type Terminals Loudspeaker Connector

Tinggalkan pesan

Deskripsi Produk

Products Description

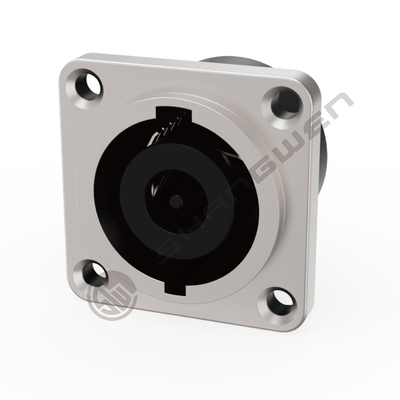

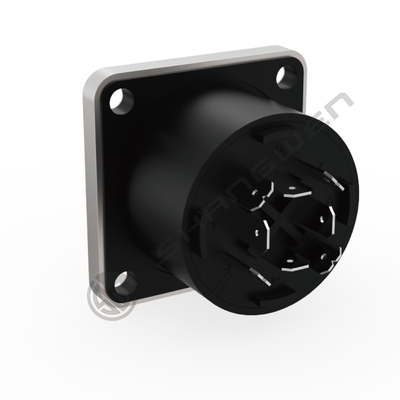

8-pole male chassis speakon connector, Nickel housing, metal shell,solder or ¼" flat tabs The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Model：SWM8S-2ZM

☑Extremely robust metal housing designed for harsh and demanding environment
☑Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
☑Ideal product for touring applications and harsh environments
☑Uses precise “Quick Lock” system Mates with all currently available speakON products

1.Product parameters

Connection Type	SpeakON
Gender	Male

2.Electrical parameters

Contact resistance	< 2 mΩ (after lifetime)
Dielectric strength	3 kVdc (peak)
Insulation resistance	> 10GΩ
Rated current per contact	40 A rms continuous
Rated current per contact	50 A audiosignal, duty cycle 50 %
Rated voltage	250 V ac
Attention	SpeakON is NOT to be used as an AC mains or power supply connector!

3.Mechanical parameters

Service life	＞5000 mating cycles
Locking device	Quick Lock
Chassis shape	Square G-size flange
Layout	Four thru holes

4.Material parameters

Contact plating	4 µm Ag
Insert	Polyamide (PA 6 30 % GR)
Shell	Zinc diecast (ZnAl4Cu1) Ni
Contacts	Spring Copper (CuSn0.2)

5.Environmental parameters

Flammability	UL 94 HB
Protection class	IP 50 (mated condition)
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C

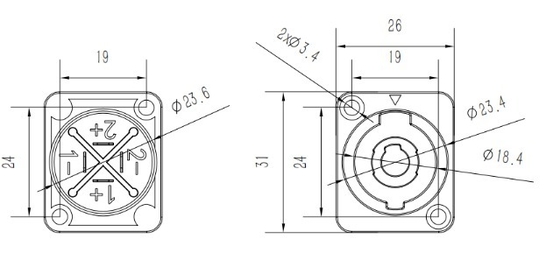

5.Size reference (unit /mm)

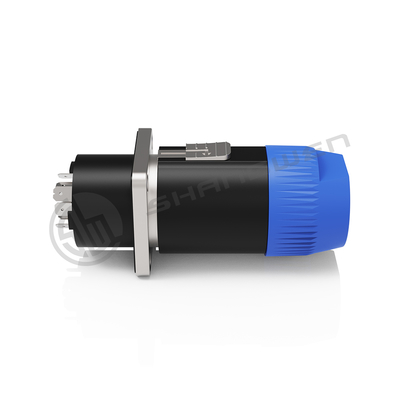

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
