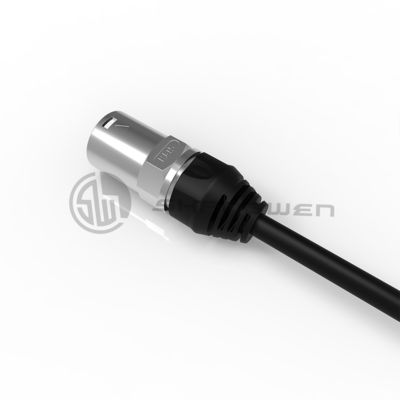

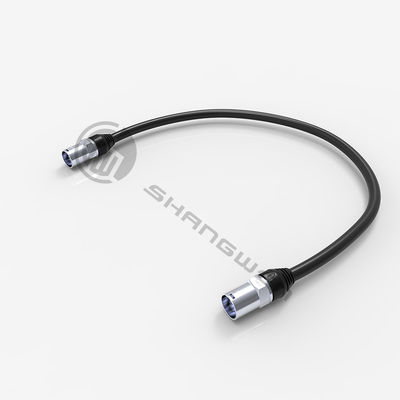

Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors

  • Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors
  • Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors
  • Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors
  • Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors
  • Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors
Place of Origin Guangdong, China
Nama merek SHANGWEN
Model Number SW8XX-ND
Minimum Order Quantity 5 pieces
Harga CN¥22.88/pieces 5-99 pieces

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Type Adapter Gender Female
Industrial electronics accessories
Menyoroti

CAT5E PoE++ Linking Cables

,

Female Signal Connector Cable
Tinggalkan pesan
Deskripsi Produk
Products Description

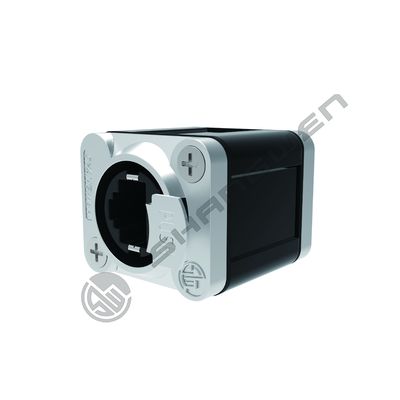

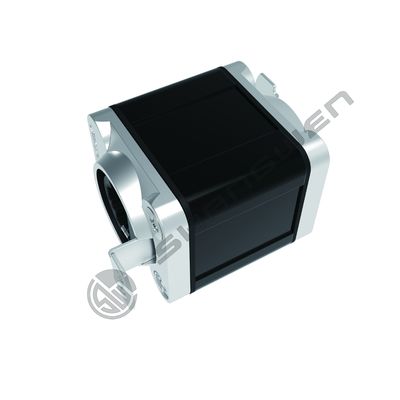

etherCON feedthrough coupler for cable to cable extensions

For the signal conversion problem encountered in the signal transmission, this product can ensure the stable connection ofthe signal in the temporary state.
For various conversion problems encountered in current transmission, this product can ensure stable connection of thecircuit in the temporary state. Omit the traditional docking connector, meet the requirements of the cross connection mode. Protection level can reach lP65 with the waterproof gasket.

Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 0
SW8XX-ND
Indoor signal adapter connector

☑Versatile with SW8MC-A-2N or any standard RJ45 connector
☑ The traditional mating connector is omitted and the cross-connection method is satisfied
☑ For the signal conversion problems encountered in signal transmission, this product can ensure the stable connection of the
signal in a temporary state
☑ Complies with TIA/EIA568 BandISO/IEC11801 transmission standard for CAT5e
1.Product parameters
Connection Type
Coupler (adapter)
Gender
Female
2.Electrical parameters
Contact resistance
< 10 mΩ
Dielectric strength
1 kVdc
Frequency Range
1 - 100 MHz
Insulation resistance
> 0.5 GΩ
Rated current per contact
1,5 A
Rated voltage
< 50 V
Standards compliant
TIA/EIA 586B, IEC11801
3.Mechanical parameters
Insertion force
≤ 20 N
Pull out force
≤ 20 N
Service life
> 1000 mating cycles
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Bronze (CuSn8)
Contact plating
0.2 µm Au over Ni plating
Inner core
PBTP 15 % GR
Shell
AlMgSi 0.5, black plated
Clamping sleeve
CuZn35Pb2, tinned
Flammability
UL 94 HB
Temperature range
-30 °C to +80 °C
5.Assembly reference
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 1
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 2
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 3
Application area
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 4
Company Information
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 5
Patent & Certification
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 6
Exhibition activities
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 7
Packaging reference
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 8
Payment and logistics
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 9
FAQ
Indoor Panel Mount Hole Rj45 Plug Adapter Female Signal Connector Cable CAT5E PoE++ Linking Cables AutoMDIX Power Connectors 10
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
