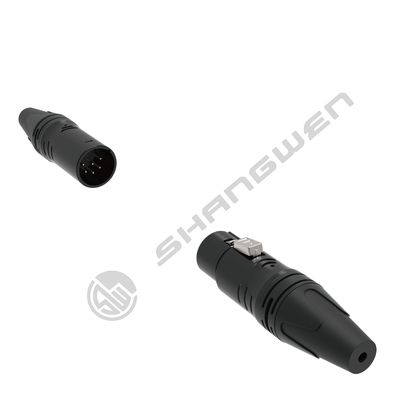

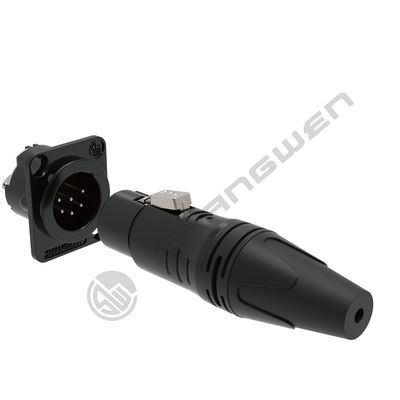

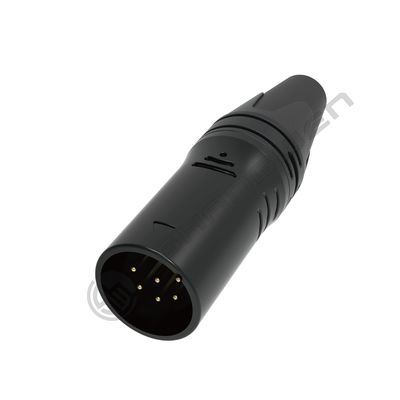

6-Pin XLR Audio Video Connectors Durable Indoor XLR Connectors with IP40 Protection Class
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| IP level | IP40 | Type | XLR connector |
|---|---|---|---|
| Application | Audio & Video | Gender | Female |
| Industrial electronics | accessories | ||
| Menyoroti | 6-Pin XLR Audio Video Connectors,Durable Indoor XLR Audio Video Connectors |
||
Deskripsi Produk
Products Description

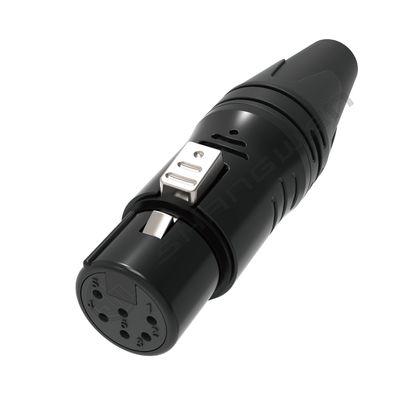

XLR connector-6 pin female plug
Model：SWF6X-3TBN-KN-B (Black)
☑The contact pin is gold-plated，the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
1.Product parameters
Connection Type | XLR |
Gender | Female |
2.Electrical parameters
Capacitance between contacts | ≤7pF |
Contact resistance | ≤3mΩ |
Dielectric strength | 1.5kVdc |
Insulation resistance | > 1.5GΩ (initial) |
Rated current per contact | 7.5A |
Rated voltage | <50V |
3.Mechanical parameters
Sign Cable O.D. | 3.5-8mm |
Insertion force | ≤ 40N |
Withdrawal force | ≤ 40N |
Service life | ＞1000 mating cycles |
Wire size | Max. 1.5 mm² |
Wire size | Max. 16 AWG |
Locking device | Latch lock |
4.Material and environmental parameters
Boot | TPU |
Contacts | Cu alloy |
Contact plating | Au |
Insert | Polyamide (PA 66 +30 % GF) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Cr Black |
Strain relief | Polyacetal (POM) |
Flame-retardant grade | UL 94 HB |
Protection class | IP40 |
Temperature range | -20℃to +80℃ |
5.Size reference (unit /mm)
6.Assembly reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
