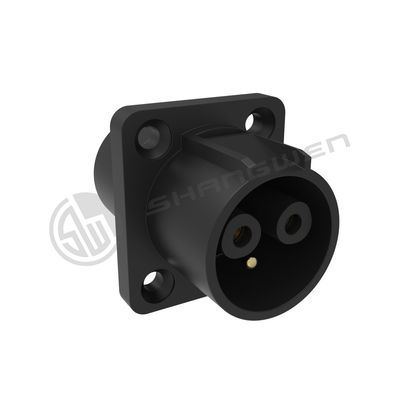

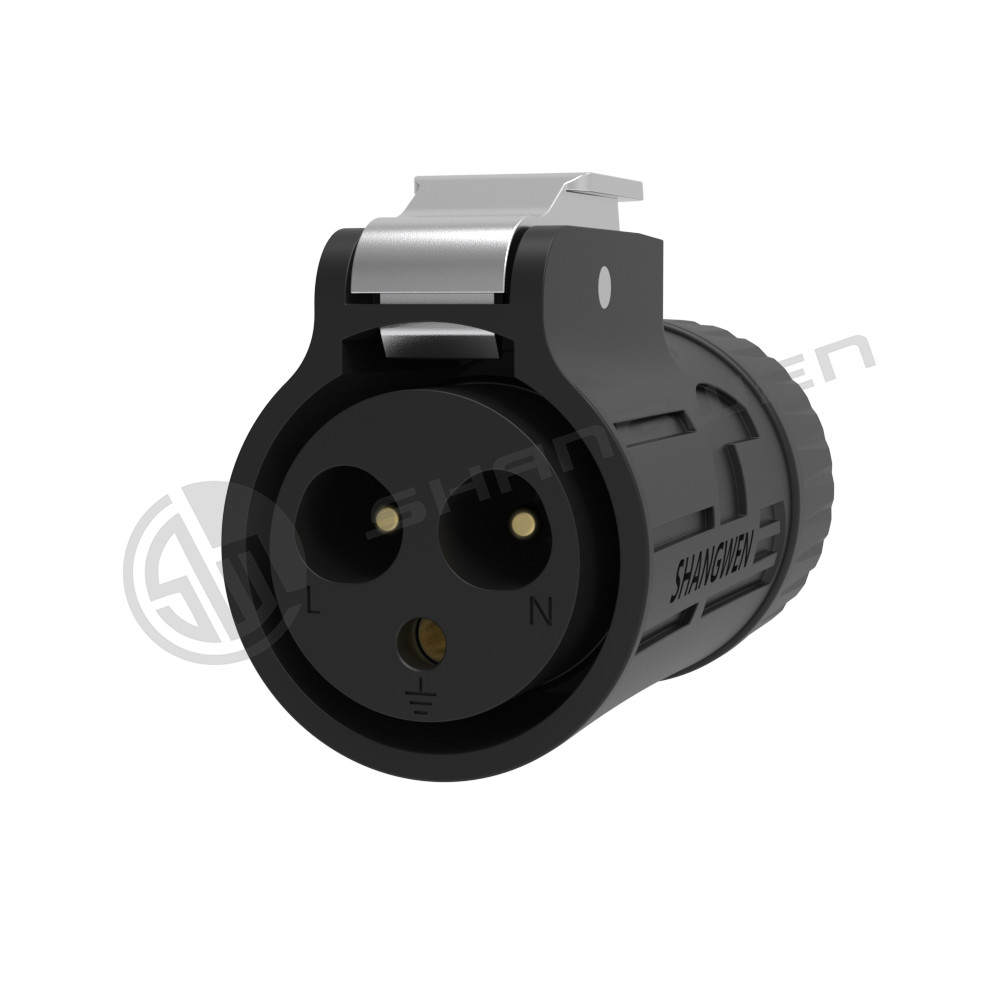

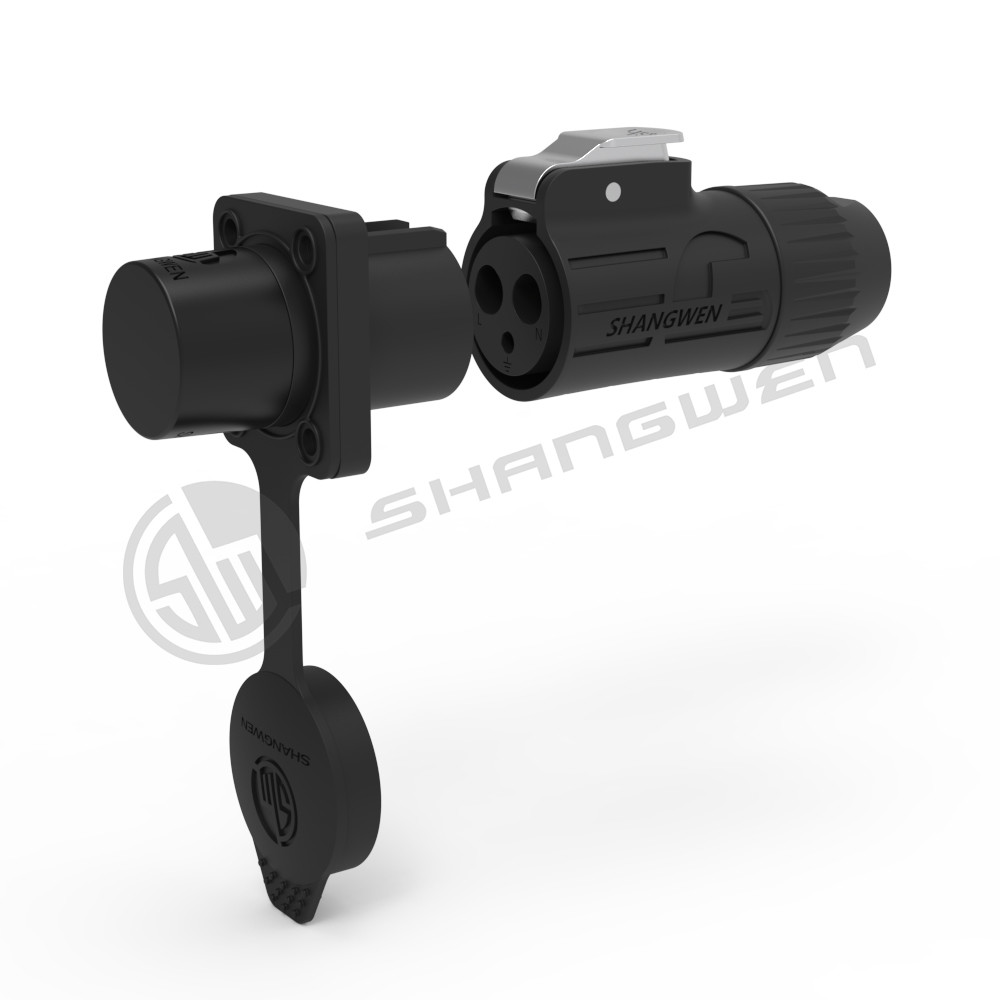

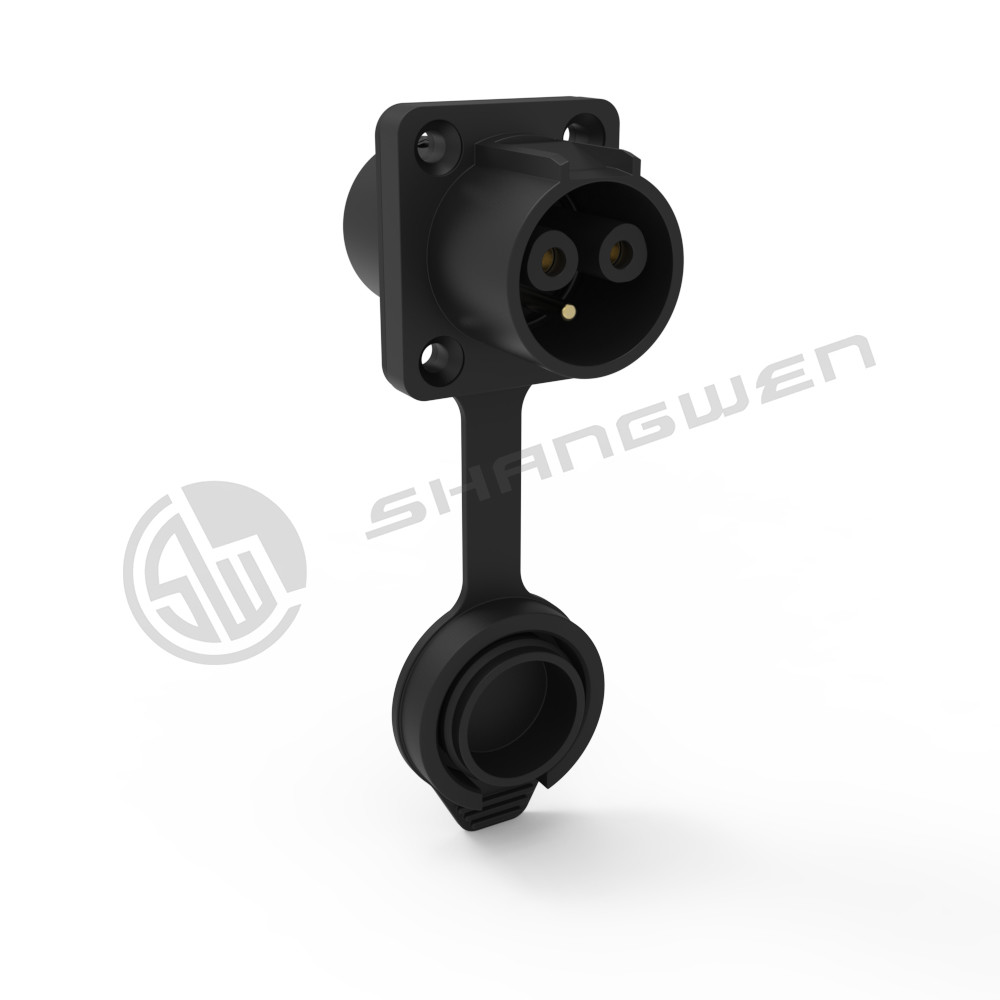

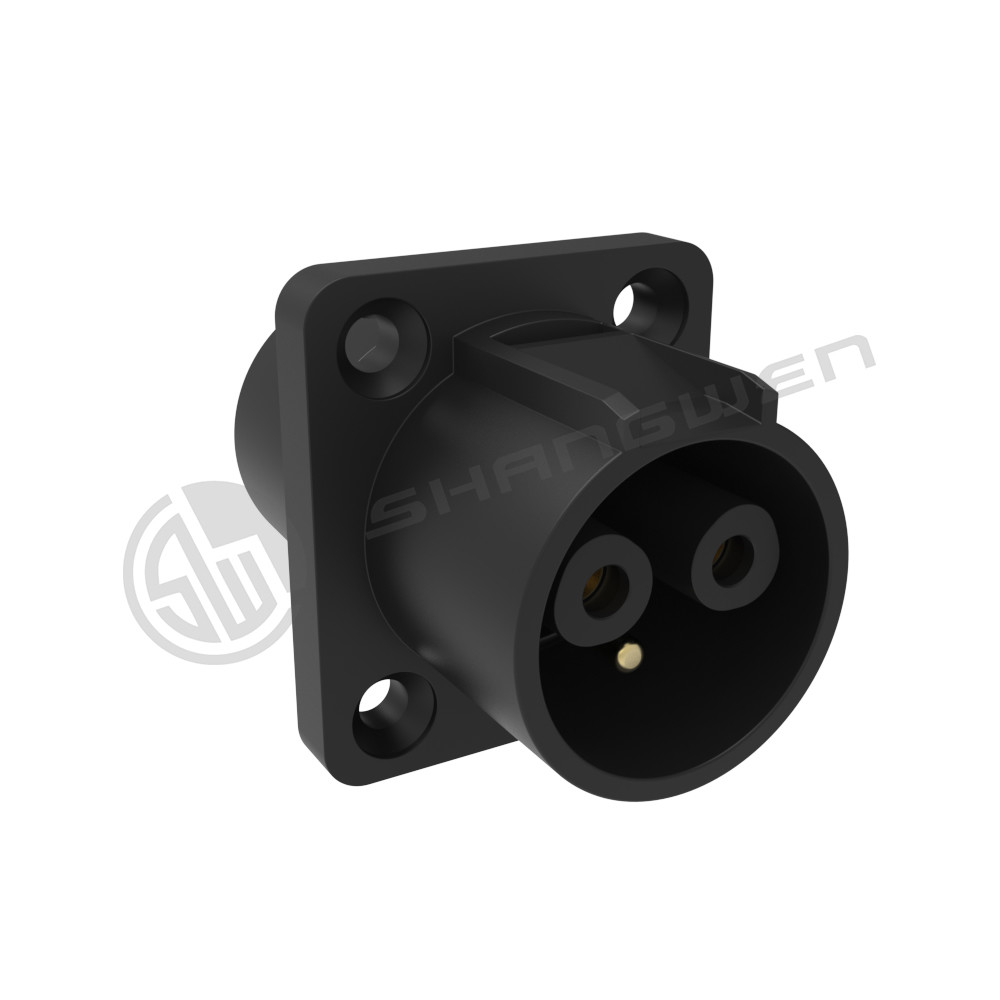

16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display

Place of Origin	Guangdong, China
Nama merek	SHANGWEN
Model Number	SWF3A
Minimum Order Quantity	10 pieces
Harga	CN¥17.16-37.17/pieces

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

Detail produk

IP level	ip65	Type	led display connector
Application	Power	Gender	Male
Industrial electronics	accessories
Menyoroti	Quick Connect Cable Lockable , IP65 Panel Socket Kit , LED Display Panel Socket Kit

Tinggalkan pesan

Deskripsi Produk

Products Description

Power connector series-3 core male powercon（Metal material ,card buckle type）

This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The socket is made of zinc alloy with complete electromagnetic and radio frequency interference protection.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!

Model : SWF3A-TB ( outdoor use )

☑Semi-metallic style,which can meet the demands of anti-interference,high strength
and high corrosion resistance;
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Zinc alloy internal structure and base, with complete electromagnetic and radio frequency interference protection
☑Multi-style inner core design to meet the needs of various industries
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67

1.Electrical parameters

Contacts NO.	Φ2.0* 3 pin
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤4mΩ
Withstand voltage	2500V AC
Insulation resistance	＞1000MΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	4mm²
Wire stripping length	φ9-12mm
Type of terminals	Soldering

3.Material and environmental parameters

Shell&insulated parts	PBT
Hardware metal	Zinc alloy
Contacts	Brass with gold-plated
Sealing	Silicone/rubber
Flame-retardant grade	UL94-V0
Temperature range	-30°C to +80°C
Temperature rise	Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level	IP65

4.Size reference (unit /mm)
